Fast Deploy Prefabricated Expandable Container House 20ft For Site Office Camp Accommodation

Brand Name:	SUNHOUSE
Model Number:	20FT Expandable Container House
MOQ:	1
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO, CE

Product Type:

20ft Expandable Container House

Furniture Option:

Kitchen And Bathroom Facilities

House/Office/Shop/Toilet/Villa/Warehouse

Specification:

20/40FT

Comfortable Living:

Free Combination Of 1-4 Bedrooms, Bathroom, And Kitchen. Flexible Design With 100%space Utilization.

Area:

1 Unit

Wall:

50mm/75mm Sandwich Panel

Highlight:

Fast Deploy Prefabricated Expandable Container House

Prefabricated Expandable Container House 20ft

Prefab Expandable Container House 20ft

Product Description

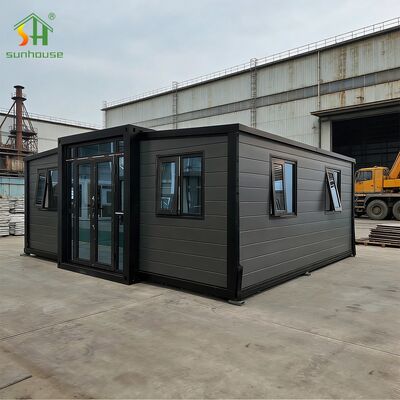

20ft Expandable Container House 37m² Expandable Container House with Fast Installation for Onsite Accommodation

The 20ft Expandable Container House delivers maximum space efficiency with minimum logistics cost. It ships as a compact 20ft module and expands on site into a comfortable living area suitable for temporary housing, project accommodation, or mobile offices. Built with a galvanized steel frame and insulated sandwich panels, it offers stable structural performance and improved comfort across varying climates.

Ship Compact • Expand Wide • Live Ready

Key Features

20ft shipping size reduces transportation and handling costs
Side expansion design increases usable space after deployment
Galvanized steel structure improves durability and stability
Insulated sandwich wall panels support comfort and energy efficiency
Fast installation process for rapid site commissioning
Flexible interior planning for office, living, or mixed functions
Optional bathroom, kitchen, and utility preparation packages
Custom exterior color, window, door, and finishing options available

Technical Specifications

Product Type	20ft Expandable Container House
Main Structure	Galvanized steel frame
Expansion Type	Side folding expandable system
Expanded Space	Customizable by layout design
Wall System	EPS, PU, or rock wool sandwich panel (optional)
Roof System	Flat roof insulated panel (optional)
Floor System	Fiber cement board or PVC floor (optional)
Door & Window	Customizable steel or aluminum alloy options
Layout Options	1 bedroom, living zone, office zone (optional)
Electrical System	Optional wiring, lighting, sockets, distribution box
Plumbing System	Optional bathroom, kitchen, water supply, drainage
Design Service	Layout and facade options available

Applications

Construction site accommodation for workers and supervisors
Project offices, meeting rooms, and temporary management units
Mining, energy, and infrastructure camps with repeatable delivery
Resort cabins and short-stay rental units for remote locations
Emergency temporary housing and rapid relief deployment

Model Dimensions & Specifications

Model	700mini	10ft	20ft	30ft	40ft
Expand Dimension (mm)	5900×4800×2480	2950×6300×2480	5900×6300×2480	9000×6220×2480	11800×6220×2480
Internal Dimension (mm)	5460×4640×2240	2510×6140×2240	5460×6140×2240	8540×6060×2240	11540×6060×2240
Folded Size (mm)	5900×700×2480	2950×2200×2480	5900×2200×2480	9000×2200×2480	11800×2200×2480
Cover Area (㎡)	27.5㎡	18.5㎡	37㎡	56㎡	73㎡
Total Net Weight (T)	2.1	1.65	3.12	4.25	5.3
40HQ Capacity (sets)	6	4	2	1	1

Frequently Asked Questions

Can this unit be installed quickly on site?
Yes, the folding expansion structure supports fast deployment and quick commissioning.
Can you provide bathroom and kitchen options?
Yes, bathroom, kitchen, and utility preparation packages are optional based on project needs.
What insulation options are available?
EPS, PU, and rock wool sandwich panels can be selected depending on climate requirements.
Can the interior layout be customized?
Yes, layout can be customized for bedroom, living, office, or mixed-use planning.
What details do you need for quotation?
Please share quantity, destination country, layout preference, insulation option, and required utilities standard.

All specifications subject to customization. Contact us for detailed project requirements.
