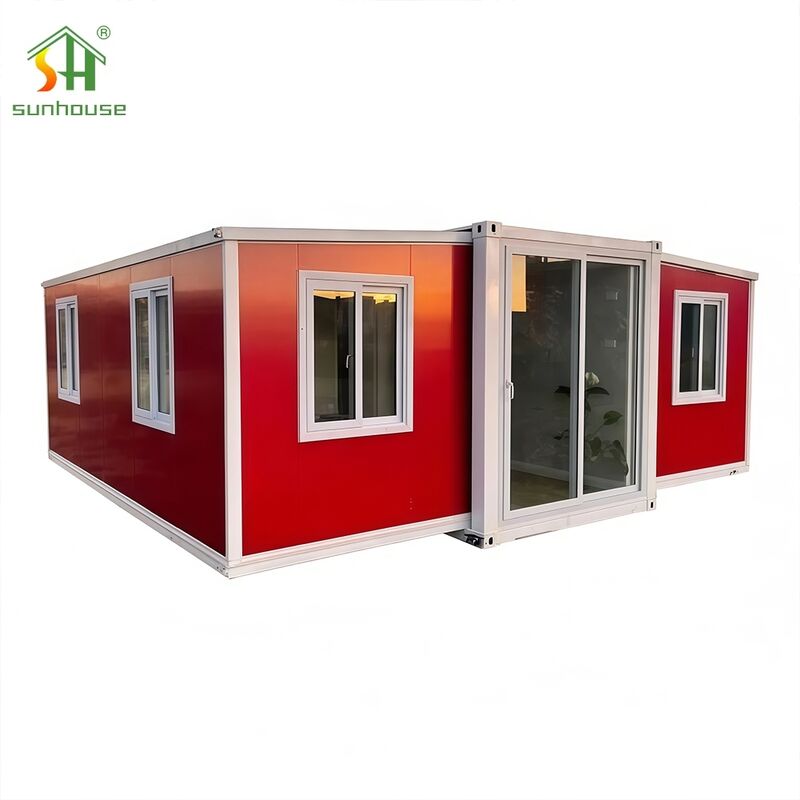

Space Saving Expandable Prefab Container House 20ft Fast Installation

Brand Name:	SUNHOUSE
Model Number:	20FT Expandable Container House
MOQ:	1
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

ISO, CE

Product Type:

Expandable Container

1 Unit

Furniture Option:

Kitchen And Bathroom Facilities

House/Office/Shop/Toilet/Villa/Warehouse

Specification:

20/40FT

Comfortable Living:

Free Combination Of 1-4 Bedrooms, Bathroom, And Kitchen. Flexible Design With 100%space Utilization.

Area:

Wall:

50mm/75mm Sandwich Panel

Highlight:

Space Saving Expandable Prefab Container House

Expandable Prefab Container House 20ft

Space Saving Expandable Prefab House

Product Description

20ft Expandable Container House with 37m² Expanded Size and Fast Installation for Temporary Living

Modular Folding Prefab Home with Kitchen & Bath Option

The 20ft Expandable Container House is a modular folding prefab unit designed to maximize usable space while maintaining shipping efficiency. It arrives in a compact 20ft transport form and expands on-site into a practical living or working interior. Built with a galvanized steel frame and insulated wall system, it delivers stable performance for temporary or semi-permanent use.

Key Features

20ft transport size expands into larger usable interior on site
Galvanized steel frame ensures strength stability and corrosion resistance
Insulated wall options support thermal comfort and noise reduction
Fast fold-out installation reduces labor costs and schedule pressure
Flexible layout supports bedroom, lounge, and work zoning
Optional wet area planning supports bathroom and kitchen readiness
Electrical preparation option supports lighting, sockets, and distribution box
Exterior finishes and window/door options support project style matching

Technical Specifications

Product Type	20ft Expandable Container House
Expansion Form	Double side fold out expandable structure
Transport Size	20ft standard shipping size
Expanded Area	Customizable based on layout and extension modules
Wall System	PU, EPS, rock wool insulated sandwich panel optional
Roof System	Flat roof insulated roof panel optional
Floor System	Cement fiber board optional, PVC flooring optional
Window & Door	Customizable aluminum alloy or steel options
Layout Options	1 to 2 bedrooms optional, living zone optional
Interior Finish	Customizable finish packages available
Electrical System	Optional wiring, lighting, sockets, distribution box preparation
Plumbing System	Optional water supply, drainage, bathroom, kitchen readiness

Applications

Construction site office, meeting room, and project department units
Worker camp accommodation, temporary dormitory, and rest cabins
Resort rental cabins and homestay units for fast deployment
Backyard studio, ADU style extra room for family or rental use
Emergency temporary housing for disaster relief and recovery projects
Warehouse, gatehouse, security room, and temporary utility buildings

Dimensions Comparison

Model	700mini	10ft	20ft	30ft	40ft
Expand dimension (mm)	590048002480	295063002480	590063002480	900062202480	1180062202480
Internal dimension (mm)	546046402240	251061402240	546061402240	854060602240	1154060602240
Folded Size (mm)	59007002480	295022002480	590022002480	900022002480	1180022002480
Cover an area (㎡)	27.5㎡	18.5㎡	37㎡	56㎡	73㎡
Total net weight (T)	2.1	1.65	3.12	4.25	5.3
40HQ can Hold (set)	6	4	2	1	1

Frequently Asked Questions

How fast can the 20ft expandable unit be installed on site?

Installation time depends on site conditions and configuration. A trained team can complete deployment faster with prepared foundation and utilities.

Can you provide a 1 bedroom or 2 bedroom layout with living area?

Yes, layouts can be configured for 1 to 2 bedrooms plus a lounge zone and functional partitions based on your use scenario.

Do you support insulated panels for different climates?

Yes, PU, EPS, or rock wool insulation options are available to match hot, cold, or mixed climate requirements.

Can the house be prepared with bathroom, kitchen, and utility interfaces?

Yes, optional plumbing and electrical preparation can support bathroom, kitchen readiness, lighting, sockets, and distribution box setup.

What details are needed to confirm price and production?

Please share destination country, site location, layout plan, insulation option, finish level, window/door needs, and local electrical standard.
